Home >> Products>> PT-Series Timers>> PT-1-2440TG

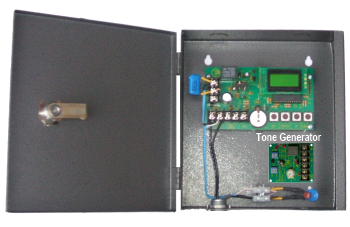

PT-1-2440TG
 Stand Alone Programmable Bell Timer with Tone Output

Bell Timer with tone Ouput
Factory timer
  ·
  • Plug-in transformer 12 volts DC (operates on regular 120 VAC)
  • Form “C” relay contacts are rated 10 amp @ 120VAC/24VDC.
  • EE Prom memory protects against loss of programming due to power failure.
  • Accurate crystal controlled clock.
  • ON/OFF control or PULSE/MOMENTARY control.
  • 50 programmed daily events.
  • Selectable Tone output 10 tones to choose from
  • Block programming capacity can accommodate a total of 350 events per week.
  • 10 programmable Holiday dates.
  • Alphanumeric LCD display simplifies programming.
  • Standard or Daylight Savings Time settings.
  • Automatic compensation for leap year.
  • Lithium battery backup maintains clock
  • Dimensions: 8.5”H x 7.5”W x 3.5”D.
  • 1/2" and 3/4" combination knockouts.



Item

Description

Product

PT-1-2440TG

Relay

1 Output Relay

Relay Rating

Form "C" 10 Amps

Maximum Events

50 Events per relay

Power

12 Volts DC Plugin Transformer (supplied)

Size

8.5”H x 7.5”W x 3.5”D

Color

Grey

Weight

5.0 lbs

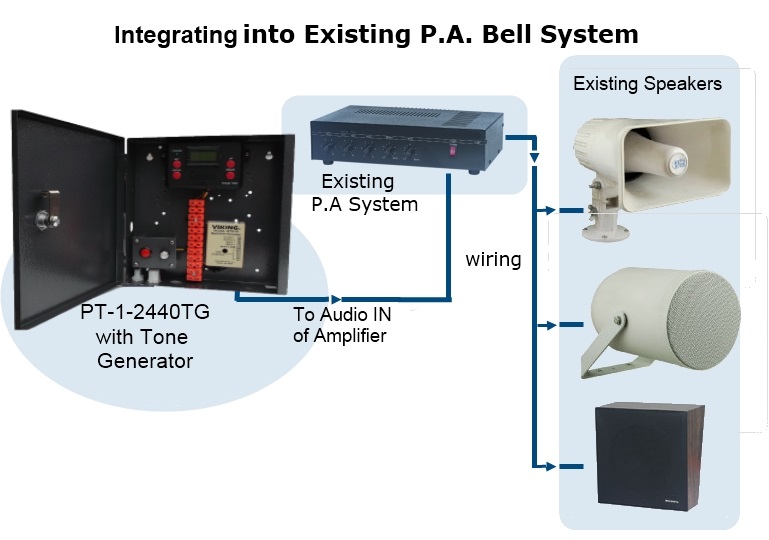

Figure 1 PT-1-2440TG Using Existing P.A. System

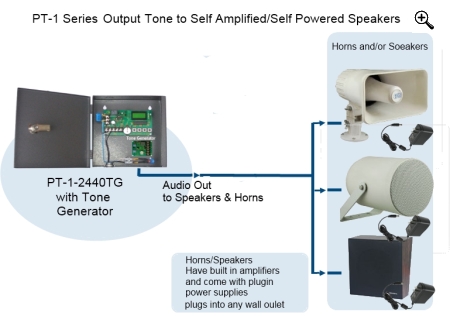

Figure 2 Tone Output to Self Powered Self Amplified Speakers & Horns

Figure 3 Tone & Power Output
