Bell Over Web
WR-2 Bell Over Web 2 Channel Output

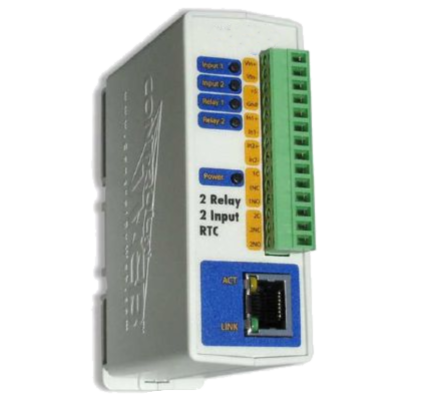

Web Relay 2 Channel



Control Bells Over Web No Software Required....... Program Over Any Browser

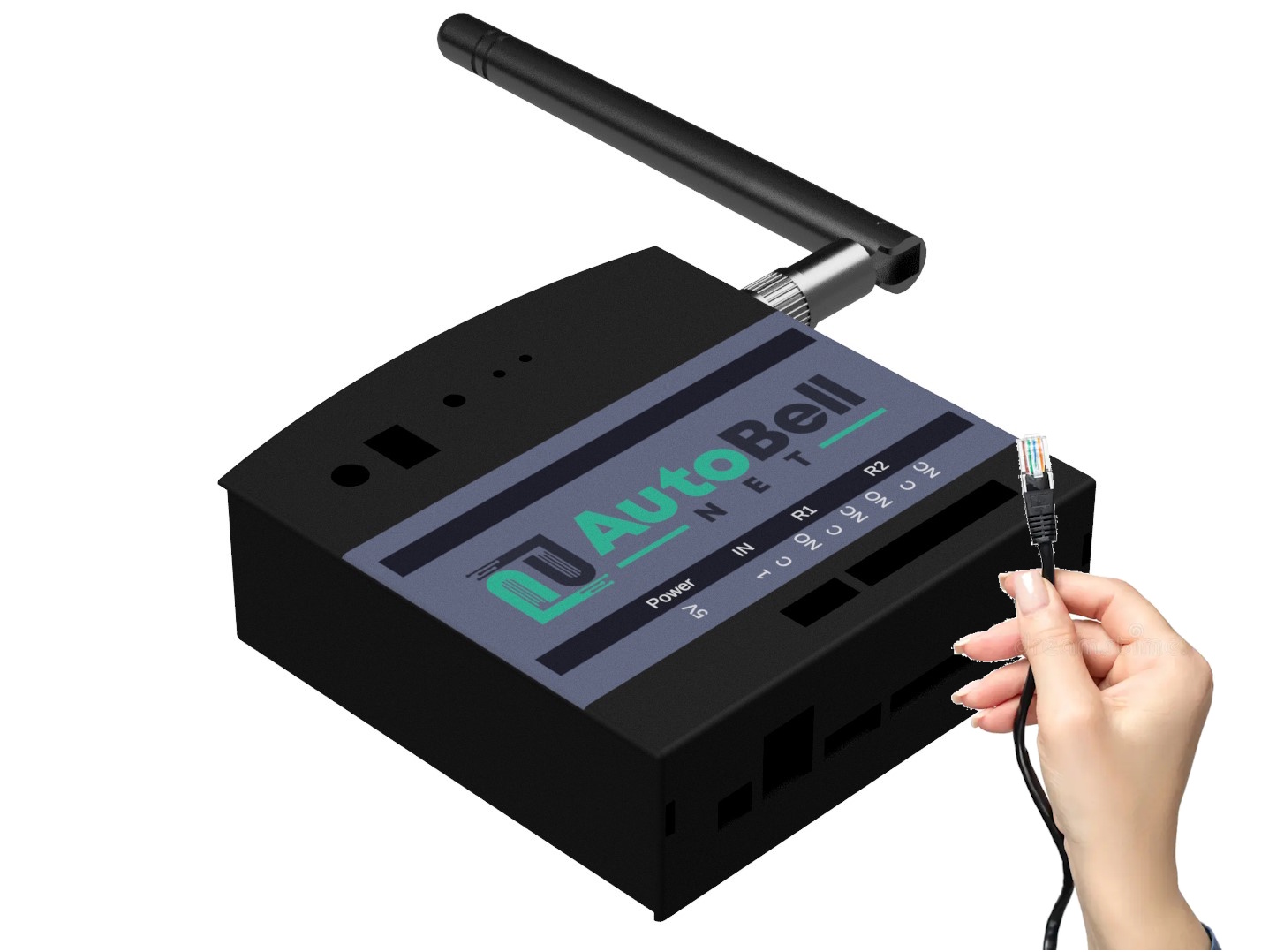

WR-2 Controller is an electro-mechanical relay with built-in web page interface, allowing complete control from any network connected web browser. It can be controlled and or monitored over any IP network, including private networks, IP based industrial control networks and the Internet.

  • 2 Output Relays
  • 100 Daily Events
  • Pulse Output 1-99second duration for Bell or Horn
  • On/OFF Control
  • Synchronize to any time source
  • Configure from any Web Browser
  • Operates on any 12-24 VDC Universal plug-in power supply

The WR-2 unit allows for total synchronization of your factory bells or horns as well as operate analog and digital wall clocks throughout your facility.

The WR-2 unit can be connected to any computer or network by simple ethernet connection, it can be configured via any web browser and then operate off-line in stand alone mode.

Best of all there is no software required, making setup SIMPLE and effortless

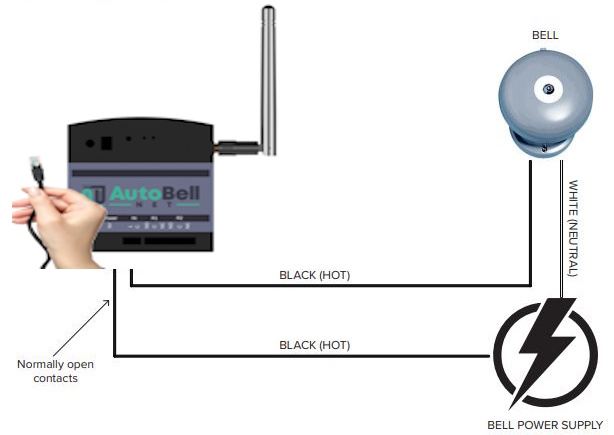

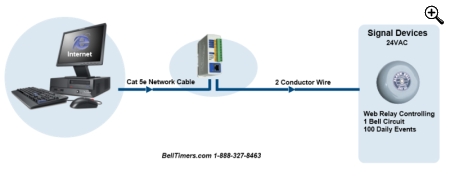

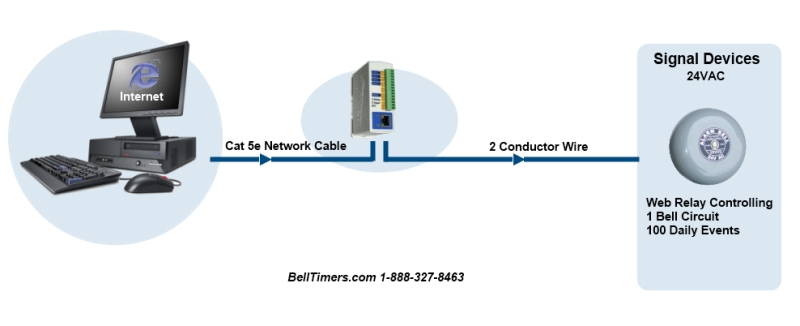

Figure 1. WR-2 Relay Controlling 1 Bell Circuit

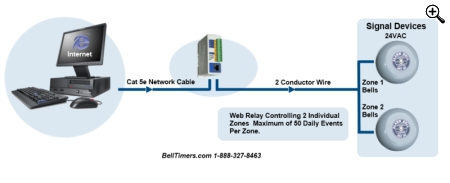

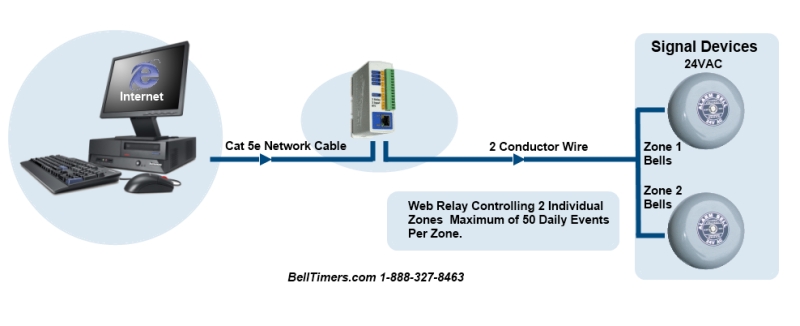

Figure 2. WR-2 Relay Controlling 2 Bell Circuits

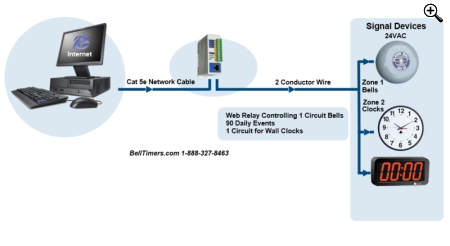

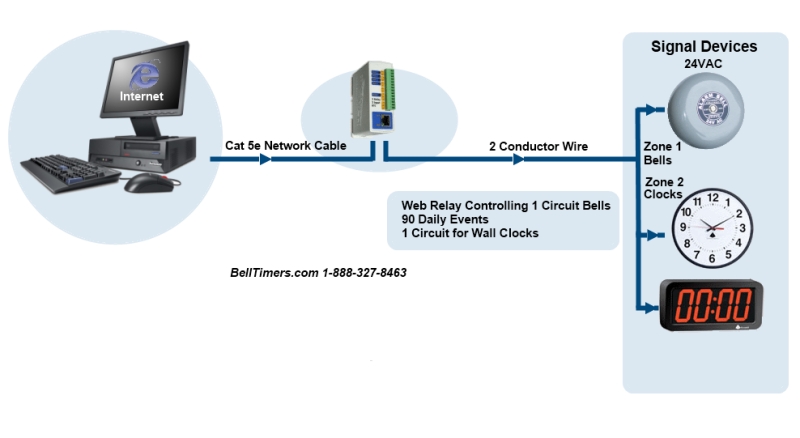

Figure 3. WR-2 Relay Controlling 1 Bell Circuit & 1 Clock Circuit

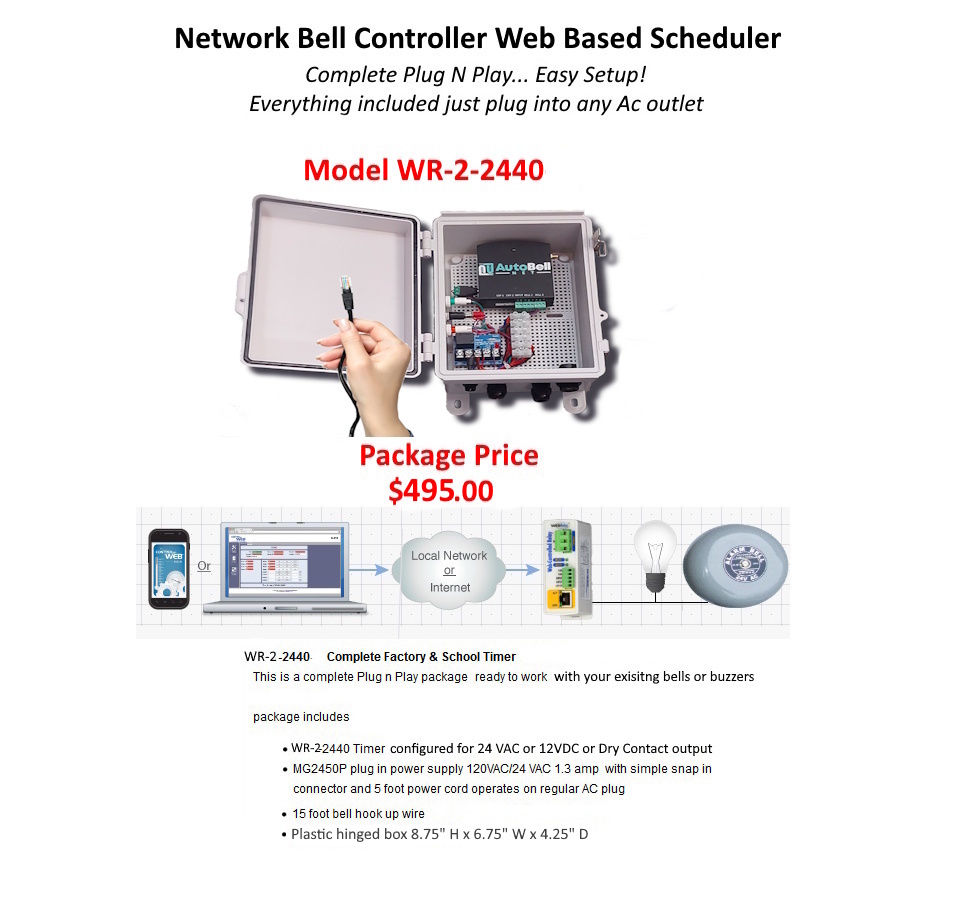

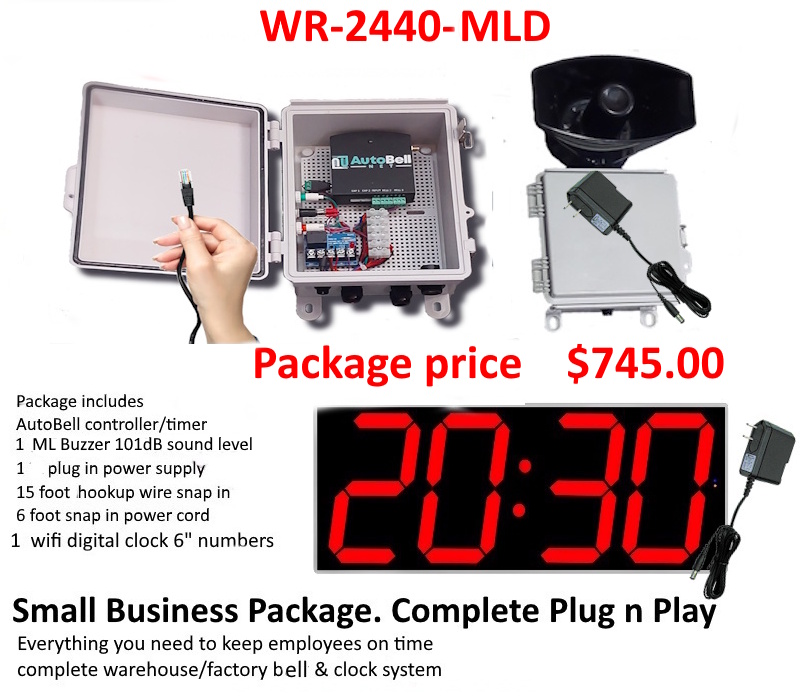

Figure 1. WR-2-2440 Complete Plug N Play Package

Figure 1. Bell Control

Figure 2. Bell & Clock Control

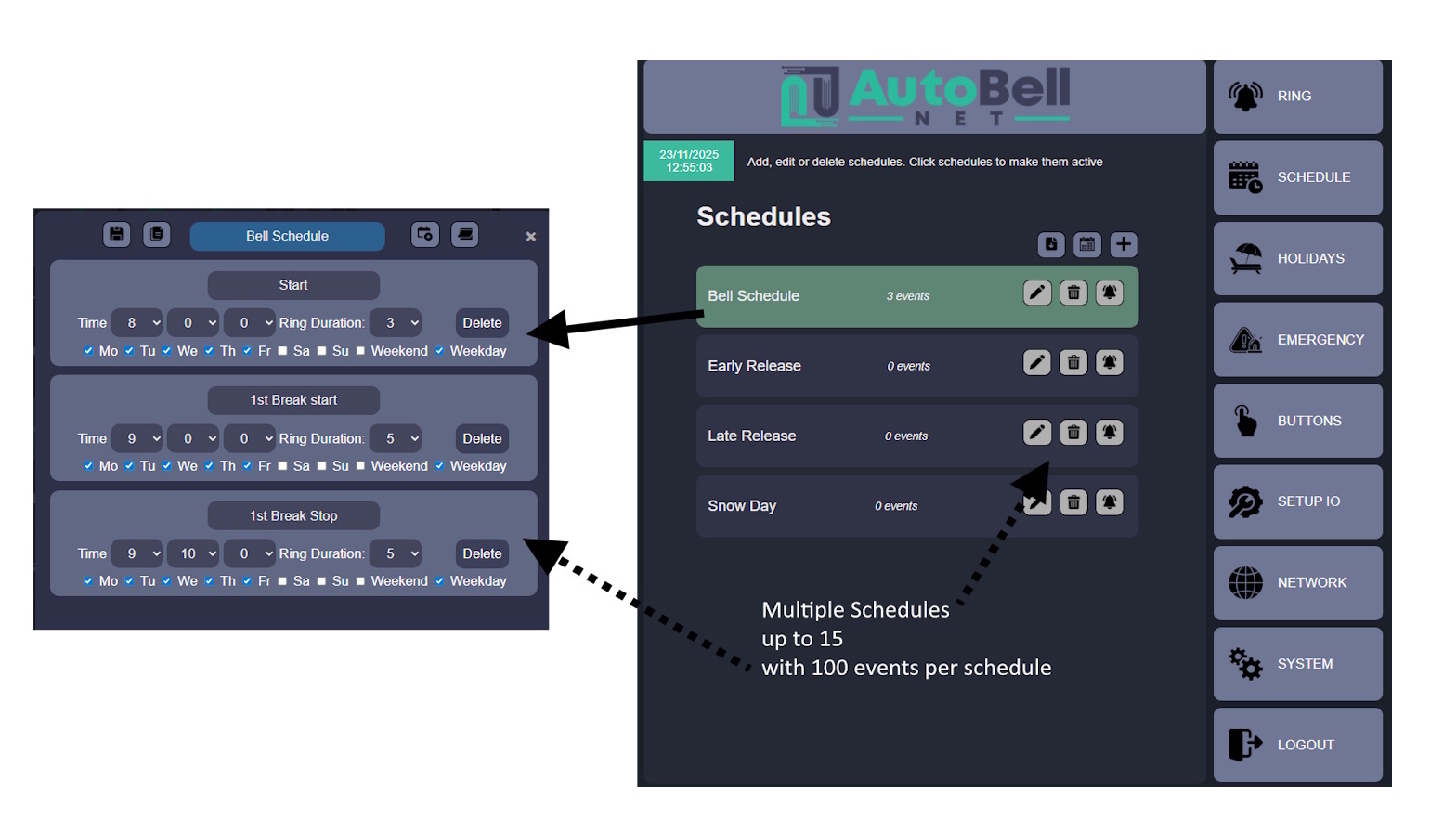

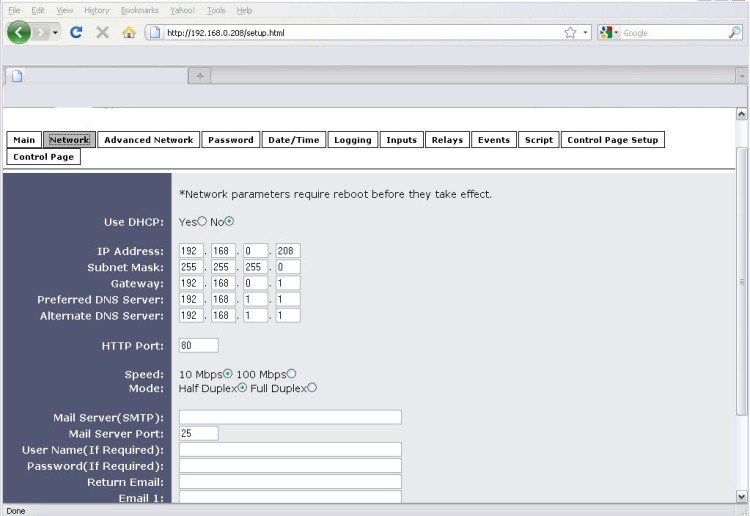

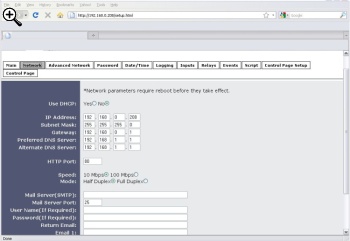

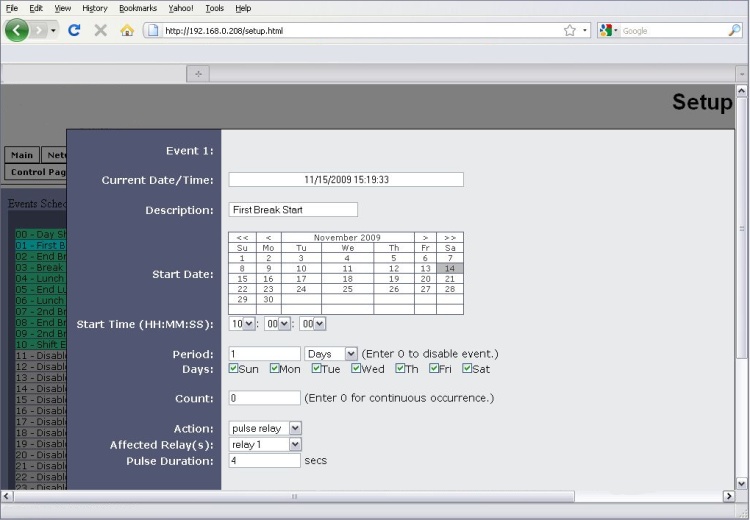

WebPage Interface

WR-2-2440

WR-2-2440

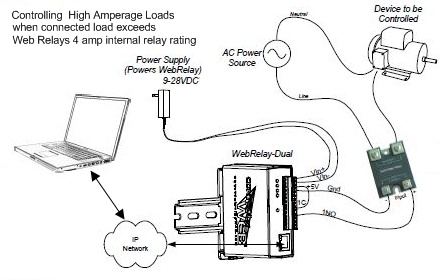

Wiring Configuration when exceeding Web Relays 4 amp internal contacts
