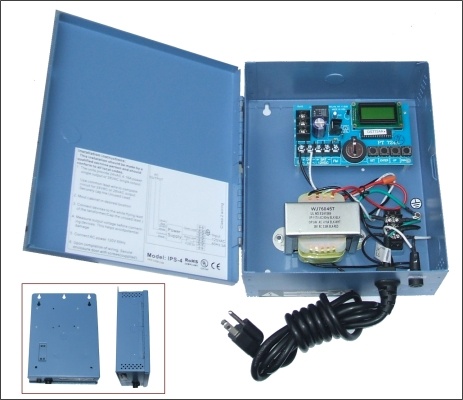

PT-1-24100
 Stand Alone Single Ciruit Programmable Bell Timer



  • 3 Prong 120 VA line cord
  • Form “C” relay contacts are rated 10 amp @ 120VAC/28VDC.
  • EE Prom memory protects against loss of programming due to power failure.
  • Accurate crystal controlled clock.
  • ON/OFFcontrol or PULSE/MOMENTARY control.
  • 50 programmed daily events.
  • Block programming capacity can accommodate a total of 350 events per week.
  • 10 programmable Holiday dates.
  • Alphanumeric LCD display simplifies programming.
  • Standard or Daylight Savings Time settings.
  • Automatic compensation for leap year.
  • Lithium battery backup maintains clock
  • Dimensions: 9.75”H x 8.25”W x 3.75”D.
  • 1/2" and 3/4" combination knockouts



Item

Description

Product

PT-1-24100

Relay

1 Output Relay

Relay Rating

Form "C" 10 Amps

Maximum Events

50 Events per relay

Power

3 prong regular line cord (supplied)

Size

9.75”H x 8.25”W x 3.75”D

Colour

Blue

Weight

11.0 lbs

Maximum Load

4.0 Amps @ 24VAC



Figure 1

Figure 1 Internal Power For Signals

Figure 2 "DRY" Contact Closure

Figure 3 External Power For Signals

Figure 4 External Switching For High Amp Loads
