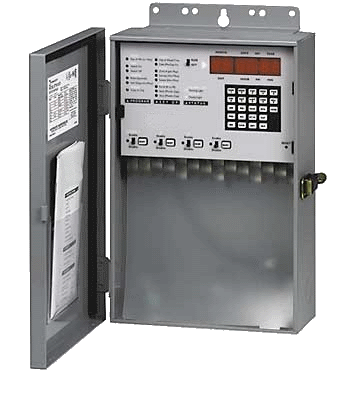

ET-4 4 Channel
Stand Alone Programmable Bell Timer


  ·
  • 120VAC/208VAC/240VAC user selectable
  • Form “C” relay contacts are rated 20 amp @ 120VAC.
  • EE Prom memory protects against loss of programming due to power failure.
  • Accurate crystal controlled clock.
  • ON/OFFcontrol or PULSE/MOMENTARY control.
  • 1000 programmed daily events.
  • Block programming capacity can accommodate a total of 4000 events per week.
  • 99 programmable Holiday dates.
  • Alphanumeric LCD display simplifies programming.
  • Standard or Daylight Savings Time settings.
  • Automatic compensation for leap year.
  • Lithium battery backup maintains clock
  • Dimensions: 8.5”H x 7.5”W x 3.5”D.
  • 1/2" and 3/4" combination knockouts.



Item

Description

Product

ET-4

Relay

4 Output Relay

Relay Rating

Form "C" 20 Amps

Maximum Events

1000 Events per relay

Power

120 VAC/208VAC/240VAC selectable

Size



Colour

Grey

Weight

5.0 lbs

Maximum Load

20 Amps @ 120VAC



Applications
