PT Series timer

  • PT Series timer can have up to 50 events per day.
  • The PT series timer is programmed directly from the 4 button keypad and has a clock accuracy of +/- 20 seconds per month.

WR-2 Series

  • WR-2 Series is connected to your network with normal CAT5e cable and has a built in WEB Interface or WEB GUI.
  • The WR-2 can be set to automatically synchronize with any NTP server so you get Atomic clock precision time control.

AutoBell Series

  • The AutoBell can be programmed from the touch screen at the timer.
  • It can be programmed and controlled from any Smart Phone PC or Tablet when it is connected to your network via Wifi connectivity.


Home >> Products>> Products>> AutoBell2
preview

TK
                              DIY TK-
                              2440 AutoBell with Bell AutoBell with Buzzer AutoBell with Bell & Clock
      TK-DIY                TK-2440            TK-2440-6        TK-2440-4H       TK-2440-6D
Autobell with Buzzer & Clock
TK-2440-4HD

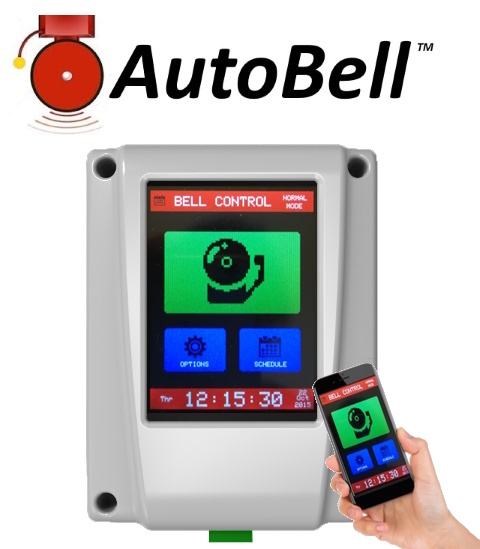

Introducing the next generation AutoBell
Factory & School Bell timer

  • Control Bells From Smart Phone or Tablet
  • Easy to program No software Required
  • Add/Modify your lunch & breaks or class change easliy over Smart Phone/Tablet or PC
  • Can be Stand alone or Wif connected
  • Accurate Time ..No More time drift synchronize with cell phone/computer or Atomic clock


All New Autobell  Touch Screen 7 Day programmable timer
The Autobell timer is a revolutionary new timer that can be connected to your schools or factories Wifi, Simply control your bells with the ease of a easy to use Web page interface. No programming or complicated programming rules.
Finally a timer that can be easy to use and manage, no need to go to the timer to make changes...Great for schools or factories where changing schedules often occur.

  • 40 events per day
  • ON/OFF or Momentary ON from 1 to 60 seconds
  • Daylight Savings Auto adjust
  • Battery Back up
  • Touch Screen Programming
  • Accurate to 1 second per week

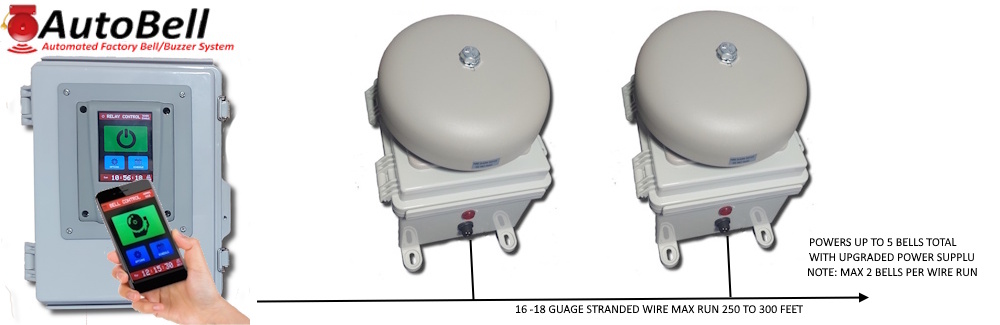

 bell wiring diagram

Wifi Connectivity included as standard
for precise time accuracy to ntp , timer will keeps it time exactly to ntp server or
Atomic clock, this is great feature for schools or company's  that to synchronize the bell system to their computerized punch in punch out clocking systems


Multi - Schedule included as Standard






Optional Large Format Digital Wall clock
In some cases Customers will like to have the timers time displayed  in a larger format, the Autobell timer has the ability to have a digital system clock wired to its output, the timer will power the clock and synchronize the external wall clock to its time
Great for Keeping employees from constantly checking the time on cell phones.
With the addition of the 4 inch display (viewable up to 125 feet away) employees will look to one clock for the official time and there will be disputing the time.

Pleas email for details and wiring requirements

These clocks are direct wired using a 3 conductor 18 gauge stranded wire  and are compatible with PT series, Autobell Series and 4 Channel timers

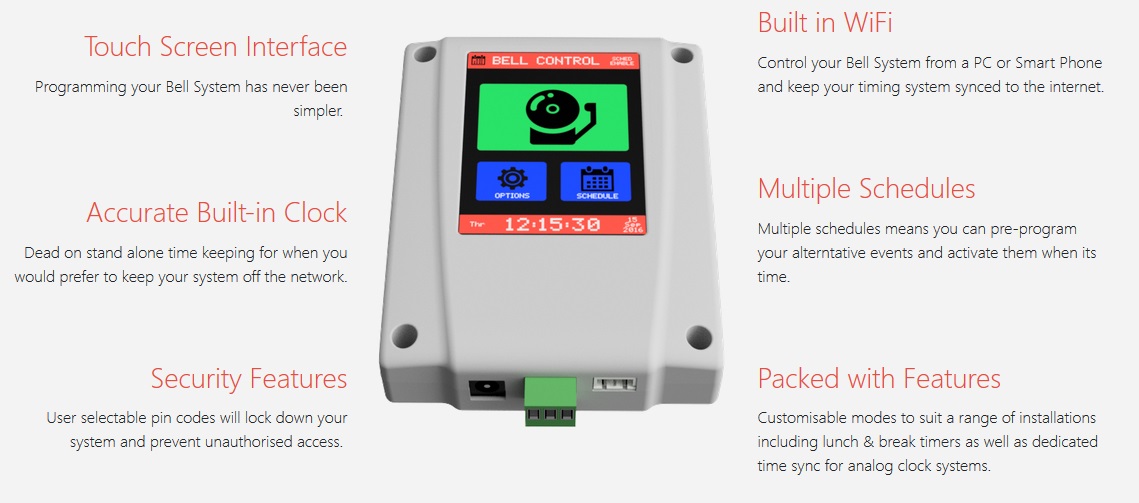

AUTOBELL TK Series ( Stand Alone & Wifi Timer)

The all New AutoBell  Timer is a extremely versatile 24 hour 365 Day event Timer. Designed to support a wide variety of applications: Factory Lunch Break timer,
School Class Change System, Building Automation, Security and
Access Control, Turning ON/OFF Lights, HVAC, Pumps, Fans any circuit that needs to operate on a timed ON/OFF or momentary ON/OFF Control.

Multiple events per day or per week can be scheduled  with holiday programming to override normal day events.   Ease of programming is facilitated from a touch screen user interface. Extremely accurate internal  clock crystal (+/- 1 second per week) or for even  more accuracy connect with optional WiFi interface
and reference the Atomic clock over Wifi network.

No other timer offers the accuracy and ease of use  than the AutoBell timer provides.


 WiFi connectivity
for Atomic clock precision time keeping AutoBell will
keep time with your network No More Time Drift

  • Touch Screen Programming...now programming is easier than ever, just like navigating on your smart Phone.
  • All programming and control is fully accessible over any mobile device
  • Ability to switch between 3 different bell schedules
  • Initiate Lockdown  or Manual ring from Mobile device
  • Increased Time accuracy!... No more annoying Time Drift, with Autobell we have completely eliminated time drift the  AutoBell has the ability to set its time to the Atomic clock just like that of your Cell phone.
  • Ability to program up to 3 different bell schedules into timer, so if you have a normal day schedule and Early release or other it is very easy to switch bell schedules... No need to reprogram timer just select from up to 3 schedules

AutoBell Manual
Autobell Flyer



$345.00
TK-2440 (timer only no signal device)
This is a complete Plug n Play package minus the signal device, suited for customers that have their own bell or buzzer and just require a reliable timer to activate it.
package includes
  • TK-2440 AutoBell Timer
  •  Plug in power supply 120VAC/24 VAC 1.3 amp  with clip connector to TK-2440 and 5 foot power cord operates on regular AC plug
  • Output can be set to 24 VAC, 24 VDC , 12VDc or dry contact closure
  • Relay rated at 120 VAC  5 amps
  • Size of metal box 9.5"x 8.0"x 2.0








$395.00

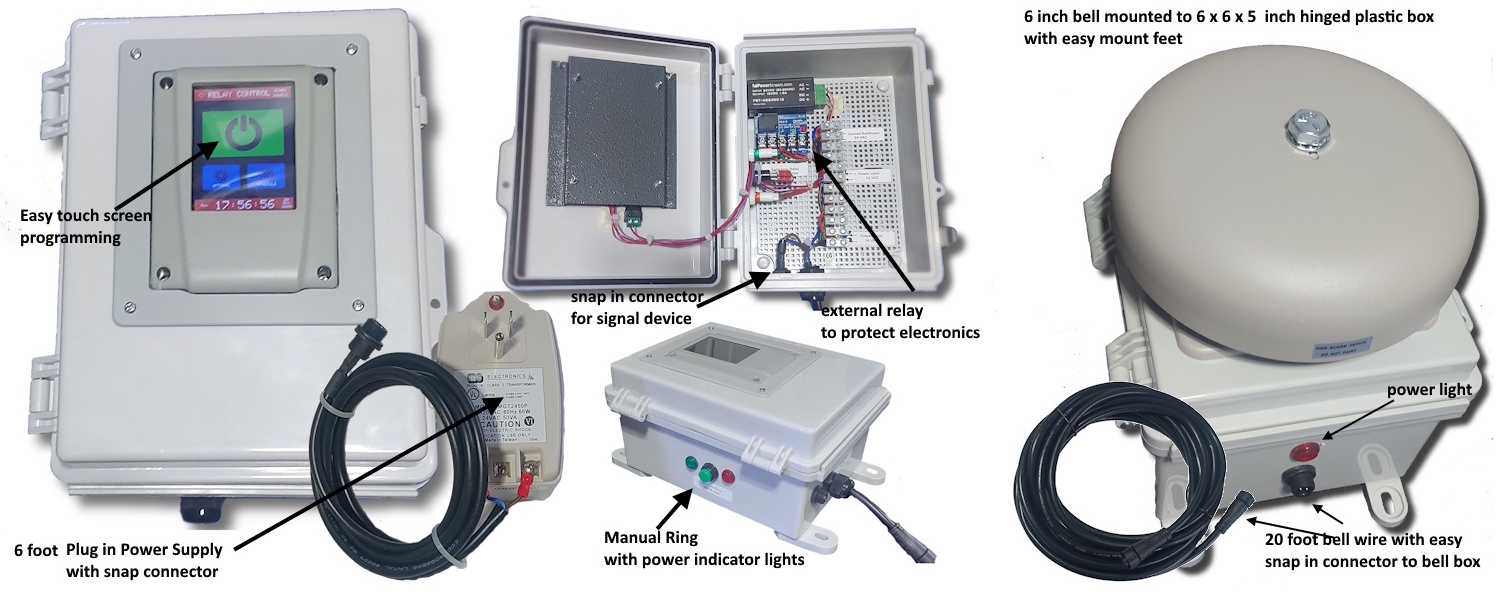

TK-2440-6
Complete Timer package with 1 Bell, everything needed
for easy and quick installation
package includes;
  • AutoBell TK-2440
  • MG2450P plug in power supply
  • 1 Model 43T  6 inch bell 24VAC 86dB with 15 foot hook-up wire and easy clip connector for connection to timer box
  • Size of metal box 9.5"x 8.0"x 2.0"



$655.00
TK-2440-6D
This is a complete Plug n Play package , it includes everything including a 4 inch display digital clock, for customers that require a digital clock to display correct time in a larger format for all employees to see.
package includes:
  • AutoBell TK-2440
  • MG2450P plug in power supply
  • 1 Model 43T  6 inch bell 24VAC 86dB with 15 foot hook-up wire and easy clip connector for connection to timer box
  • 1 digital display clock 4 inch numbers ( overall 13" X 7"X 2")
  • 15 foot bell/clock hook up wire
  • Size of metal box 9.5"x 8.0"x 2.0



$459.00
TK-2440-4H
Complete Timer package with 1Buzzer, everything needed
for easy and quick installation package includes;
  • AutoBell TK-2440
  • MG2450P plug in power supply
  • 874G5 buzzer 24VAC 101dB adjustable sound level with 15 foot hook-up wire and easy clip connector for connection to timer box
  • Size of metal box 9.5"x 8.0"x 2.0





$695.00
TK-2440-4HD
This is a complete Plug n Play package , it includes everything including a 4 inch display digital clock, for customers that require a digital clock to display correct time in a larger format for all employees to see.
package includes:
  • AutoBell TK-2440
  • MG2450P plug in power supply
  • 874G5 buzzer 24VAC 101dB adjustable sound level with 15 foot hook-up wire and easy clip connector for connection to timer box
  • 1 digital display clock 4 inch numbers ( overall 13" X 7"X 2")
  • 15 foot buzzer/clock hook up wire
  • Size of metal box 9.5"x 8.0"x 2.0



$595.00
TK-2440TG (timer only no signal device)
Play tones instead of traditional  buzzer or bell,  even record text messages that can be broadcasted over  self amplified speaker or over Paging system speakers.

If you do not have a paging system in place then select the TK-2440-TGSAL it comes with a self amplified playback speaker so you don't require a paging amplifier

If you do have a paging system then select the TK-2440-TG and the timer will utilize your existing paging speakers to broadcast a tone.

see picture below for connection to paging system amplifier


  • Up to 9 different tones can be programmed into tone module
  • Each event can have different tone
  • Tones loaded onto recordable SD card
  • Complete plug n play everything included no other parts required

Sample Tones
sample tone 1
sample tone 2
sample tone 3
package includes
  • TK-2440 Timer
  • 12VDC plug in power supply  with simple snap in connector and 5 foot power cord operates on regular AC plug
  • Tone Generator Module ( line level output) 9 different tones
  • Tone selector switch and manual ring
  • Output is line level output (600ohm) to paging amplifier or self amplified speaker.
  • Size of metal box 9.5"x 8.0"x 2.0



$725.00
TK-2440TG-SAL
This is a complete Plug n Play package including a self amplified horn speaker, suited for customers that do not have a central paging system and require a audible tone rather than a traditional bell or buzzer sound.
package includes
  • TK-2440 Timer
  • Tone Generator Module ( line level output) 9 different tones
  • 12 VDC plug in power supply with clip connector to TK-2440 and 5 foot power cord operates on regular AC plug
  • Tone selector switch and manual ring
  • 1 Model SAL403  105dB  5 watt self amplified speaker horn with volume control and plug in 24 VDC power supply
  • Size of metal box 9.5"x 8.0"x 2.0




$1425.00
TK-2440-4HW  No wiring!!
This is a complete Plug n Play package , includes wireless transmitter and wireless remote buzzer station. No need for wires just plug timer/transmitter and remote buzzer into any regular AC receptacle and ready to work out of the box.

when more than 1 buzzer is required and it is too expensive or not feasible to run wires

Completely Portable
package includes
  • TK-2440 Timer
  • 1 Wireless transmitter 2 mile line of site range
  • 1 Wireless Receiver
  • MG2450P plug in power supply 120VAC/24 VAC 1.3 amp  with simple snap in connector and 5 foot power cord operates on regular AC plug
  • 2 Model 874G5 24 VAC 101dB adjustable sound level buzzer
  • Size of metal boxes 9.5"x 8.0"x 2.0
